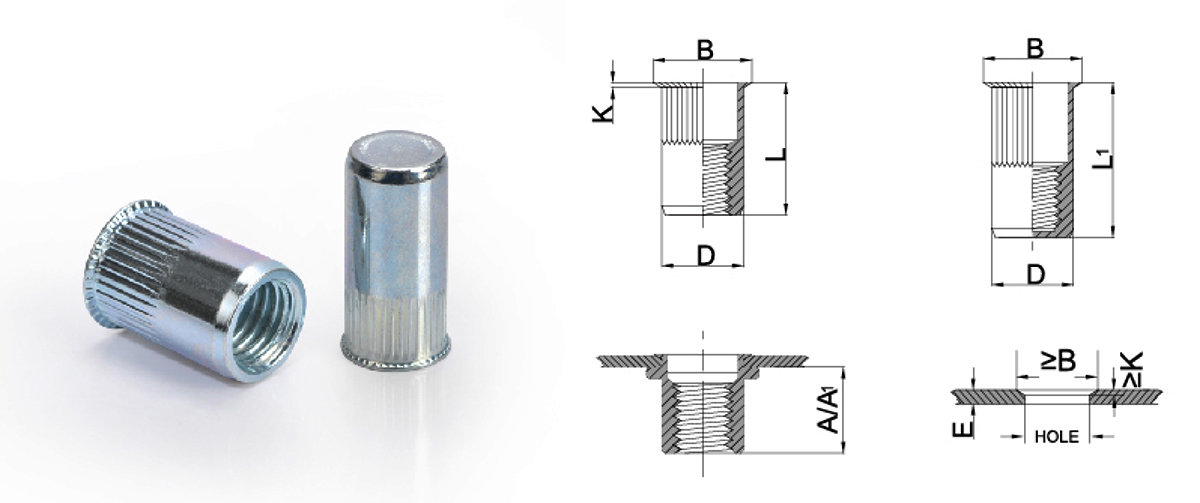

单位:mm | R=小头/K=条纹/S=碳钢/B=盲孔 | |||||||||
螺纹 | 编号 P/N |
铆接范围 | A Ref |
孔的大小 +0.1 0 |
D +0.07 -0.1 |
B 土 0.30 |
K 土0.15 |
L 土 0.30 |
盲孔 | |
A1 | L1 | |||||||||
M3 | RKS-03M-20 | 0.5-2.0 | 5.5 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 | ||
M4 | RKS-04M-20 | 0.5-2.0 | 7.5 | 6.0 | 5.9 | 7.0 | 0.5 | 11.2 | 11.0 | 15.0 |
RKS-04M-40 | 2.0-4.0 | 13.0 | 16.5 | |||||||
M5 | RKS-05M-30 | 0.5-3.0 | 6.5 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 | 11.5 | 16.5 |
RKS-05M-40 | 3.0-4.0 | 13.0 | 18.0 | |||||||
M6 | RKS-06M-30 | 0.5-3.0 | 8.5 | 9.0 | 8.9 | 10.0 | 0.6 | 14.0 | 15.0 | 20.5 |
RKS-06M-50 | 3.0-5.0 | 16.0 | 22.0 | |||||||
M8 | RKS-08M-30 | 0.5-3.0 | 11.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 | 17.0 | 23.0 |
RKS-08M-50 | 3.0-5.0 | 18.5 | 24.5 | |||||||
M10 | RKS-10M-35 | 1.0-3.5 | 12.5 | 13.0 | 12.9 | 14.0 | 0.7 | 19.5 | 18.0 | 24.5 |
RKS-10M-60 | 3.5-6.0 | 22.0 | 26.0 | |||||||
RKS-10M-35(12H) | 1.0-3.5 | 12.0 | 11.9 | 13.0 | 0.7 | 19.5 | ||||
M12 | RKS-12M-40 | 1.0-4.0 | 15.8 | 16.0 | 15.9 | 17.6 | 0.75 | 24.0 | ||
盲孔部分产品代码后级加“B",例如:RKS-03M-20B |
