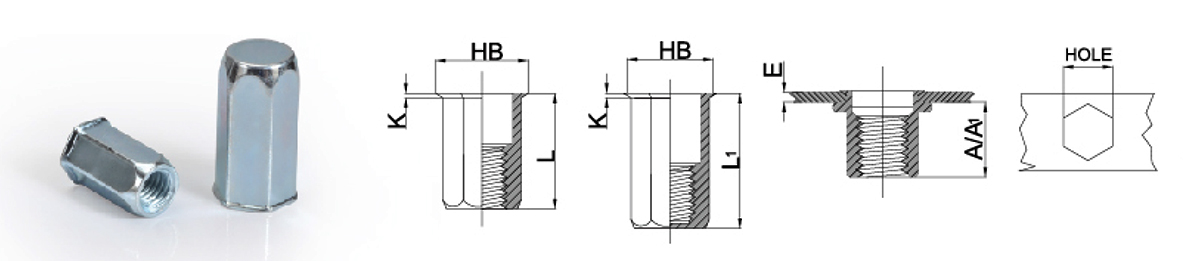

| 单位:mm | R=小头/K=全六角/S=碳钢l/B=盲孔 | |||||||||
| 螺纹 | 编号 P/N |
铆接范围 | A Ref |
孔的大小 +0.1 0 |
HD +0.07 -0.1 |
HB 土 0.30 |
K 土0.15 |
L 土 0.30 |
盲孔 | |
| A1 | L1 | |||||||||
| M3 | RFS-03M-20B | 0.5-2.0 | 5.2 | 5.0 | 4.9 | 5.8 | 0.5 | 8.5 | ||
| M4 | RFS-04M-25B | 0.5-2.5 | 7.3 | 6.0 | 5.9 | 7.0 | 0.5 | 11.0 | 12.3 | 16.0 |
| RFS-04M-50B | 2.5-5.0 | 13.5 | ||||||||
| M5 | RFS-05M-30B | 0.5-3.0 | 9.3 | 7.0 | 6.9 | 8.0 | 0.5 | 14.5 | 14.0 | 20.0 |
| RFS-05M-50B | 3.0-5.0 | 16.0 | ||||||||
| M6 | RFS-06M-30B | 1.0-3.0 | 10.0 | 9.0 | 8.9 | 10.0 | 0.6 | 16.0 | 14.8 | 20.5 |
| RFS-06M-60B | 3.5-6.0 | 18.0 | ||||||||
| M8 | RFS-08M-40B | 1.0-4.0 | 10.5 | 11.0 | 10.9 | 12.0 | 0.65 | 18.0 | 15.5 | 23.0 |
| RFS-08M-60B | 4.0-6.0 | 20.0 | ||||||||
| M10 | RFS-10M-35B | 1.0-3.5 | 11.5 | 13.0 | 12.9 | 14.5 | 0.75 | 19.0 | 20.0 | 28.5 |
| RFS-10M-60B | 3.5-6.0 | 14.0 | 23.5 | |||||||
| 盲孔部分产品代码后缀加“B" ,例如:RFS-04M-25B | ||||||||||
