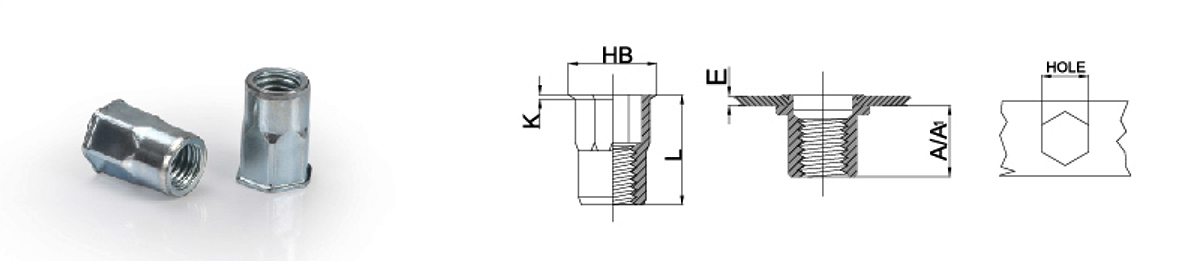

单位:mm |
R=小头/H=半六角/S=碳钢 |
|||||||
螺纹 |
编号 |
铆接范围 |
A |
孔的大小 |
D |
HB |
K |
L |
M3 |
RHS-03M-15 |
0.5-1.5 |
5.2 |
5.0 |
4.9 |
5.8 |
0.5 |
8.5 |
M4 |
RHS-04M-20 |
0.5-2.0 |
8.3 |
6.0 |
5.9 |
7.0 |
0.5 |
12.0 |
M5 |
RHS-05M-25 |
0.5-2.5 |
9.0 |
7.0 |
6.9 |
8.0 |
0.5 |
13.0 |
M6 |
RHS-06M-35 |
1.0-3.5 |
10.5 |
9.0 |
8.9 |
10.0 |
0.6 |
16.0 |
M8 |
RHS-08M-35 |
1.0-3.5 |
11.3 |
11.0 |
10.9 |
12.0 |
0.7 |
17.5 |
M10 |
RHS-10M-40 |
1.0-4.0 |
13.5 |
13.0 |
12.9 |
14.5 |
0.8 |
21.0 |
M12 |
RHS-12M-40 |
1.5-4.0 |
15.5 |
16.0 |
15.9 |
17.0 |
1.0 |
24.0 |
